Air Design Donut Rescue System

Ref. #536

Air design Donut

Please complete your purchase or empty your basket before continuing.

Add to basket

was £0.00

from £680.00

€809.20

Choose below for actual price:

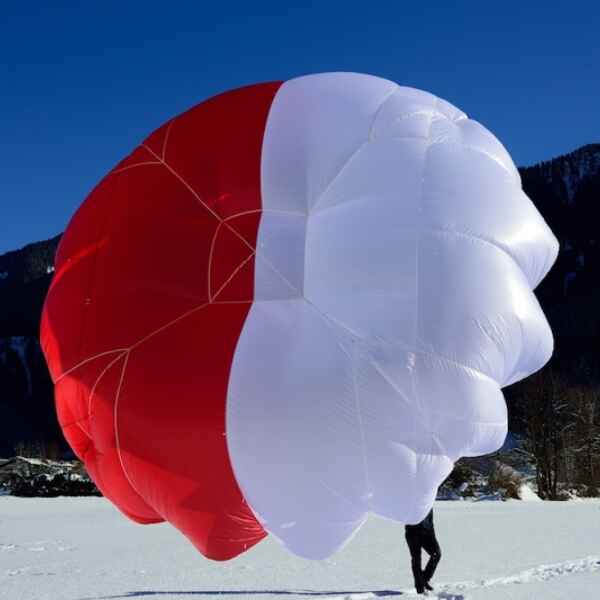

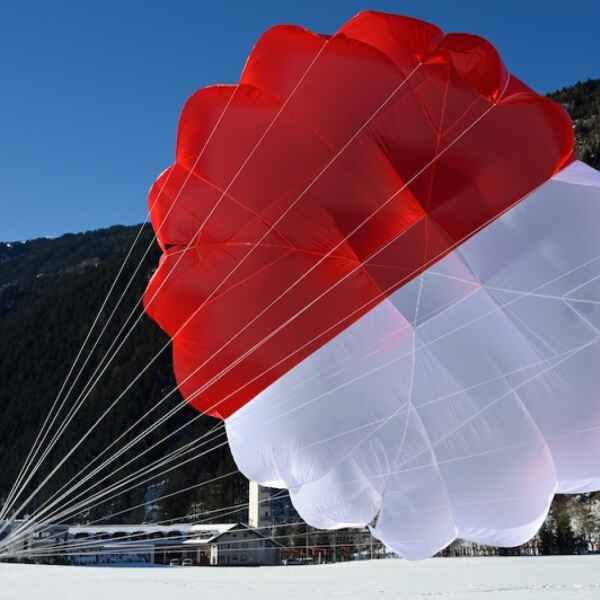

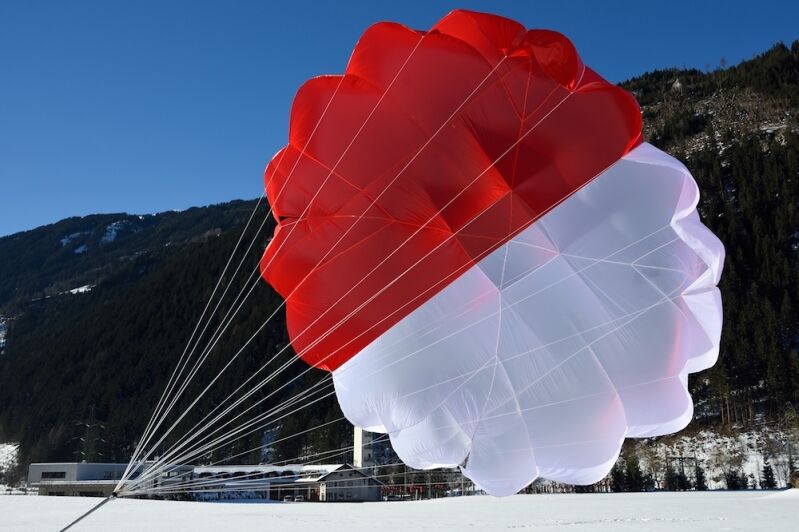

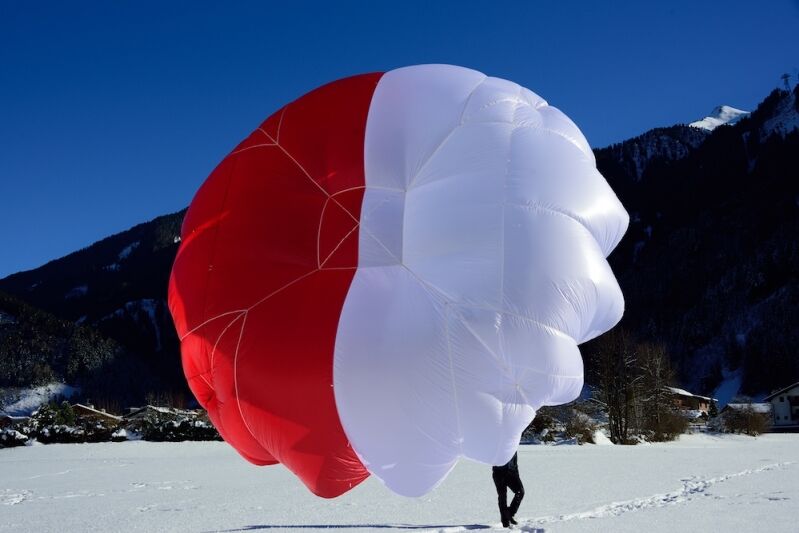

The DONUT is cut like a square canopy, but in the air presents more like that of a traditional annular. Subsequently, packing is still as simple as with conventional round rescue systems.
In many drop-tests, we simulated real-life flight behaviour. The DONUT maintains its demonstrated safe and stable characteristics, even after repetitive tests and water landings.
The DONUT’s revolutionary design provides fast opening times, and its four centre lines create a higher projected surface, resulting in low sink values. Side vents make the rescue impressively oscillation stable.
Due to the new design concept, we were able to reduce the total amount of material utilised compared to a conventional round rescue, placing the DONUT in the standard light rescue weight range. The 100kg max coming in at a mere 1300g, and the 120kg max at 1600g.
You may have noticed that we have elected to certify our rescue systems utilizing the EN certification norm over that of the LTF system norm. This is due the fact that the maximum allowable sink rate for the EN system is 5.5m/s and the LTF system allows 6.7m/s. Never happy with achieving a minimum standard, we strived for an even greater level of safety, with our rescues achieving a sink rate of just 4.6m/s.

For the sake of comparison, here’s how it is best described:

A rescue with 6.7 m/s max sink rate corresponds to a jump from 2.2 metres in height.
A rescue with 5.5 m/s max sink rate corresponds to a jump from 1.5 metres in height.
A rescue with 4.6 m/s max sink rate corresponds to a jump from 1 metre in height.

Imagine stepping off your dining room table. This is what the new AirDesign Donut offers.
