Miniplane Lightweight Paramotors - only 18 kilos
Ref. #206

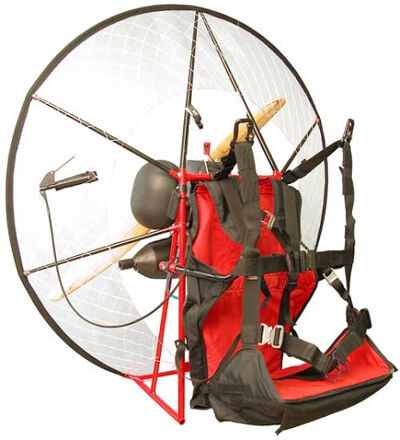

The new Miniplane frame allows the use of the proven PSF system or as an option the new revolutionary ABM system with pivot arms using a mid attachment point, in order to keep an excellent degree of stability, and at the same time allows for "active" pilot weight shift.
| Location | Fee (per item) |
|---|---|
| Collection (Spain) | £0.00 |
| UK | £80.00 |
| £80.00 | |
| Europe | £160.00 |
| Europe | £170.00 |
Please complete your purchase or empty your basket before continuing.
was £0.00
Why spend money on heavy units when really all you want to do is get off the ground, simple designs done well - meet the Miniplane. The world beating Top 80 engine, possibly the most reliable PPG engine about, is simple to use, easy to start, stunningly fuel efficent and easy to ground handle whilst on your back.
The basic model is ideal for a pilot up to 90 kilos with easy inflation, take off and climb rate. Alternatively order a bigger prop and frame for larger pilots.
| 115 | 125 | |
propeller | cm | 2 blades 115 | 2 blades 125 |
empty weight | Kg | 18,5 harness included | |
engine |
|
| |
carburetor | Diaphragm Walbro, or basin Dell'Orto | ||
dimensions | cm cm | 125 x 125 x 75 | 135 x 135 x 75 |
reducible to h 75 x 40 x 40 | reducible to h 80 x 40 x 40 | ||
static thrust | Kg | 47 | 52 |
| noise level | dB | ||
climb rate ** | m/s | 2,2 | 2,5 |
consumption in level flight ** | l / h | 2 | < 2 |
max. pilot weight | Kg | 90 | 110 |
frame | strong aluminum alloy, ergal and fiberglass | ||
fuel capacity | l | 11,5 | 11,5 |
Range | 3 Hours | more than 4 hours | |
| ** with 75 kg pilot and performance glider | |||
